How much does a cassava starch extraction machine cost?

The price of cassava starch extraction machines depends on several factors: production capacity, configuration of machines, material of equipment, and optional devices.

Production capacity

Capacity means the quantity of cassava you want to process per hour or starch you want to produce per hour. Henan Jinrui company is a professional manufacturer and supplier of cassava starch extraction machine. According to the client’s different requirements, we have developed product lines with an input capacity of 2t/h to 60t/h. The larger the capacity, the higher price of equipment. Price range from 100k to millions of dollars.

Cassava starch extraction machinesCassava starch extraction machines

Configuration of equipment

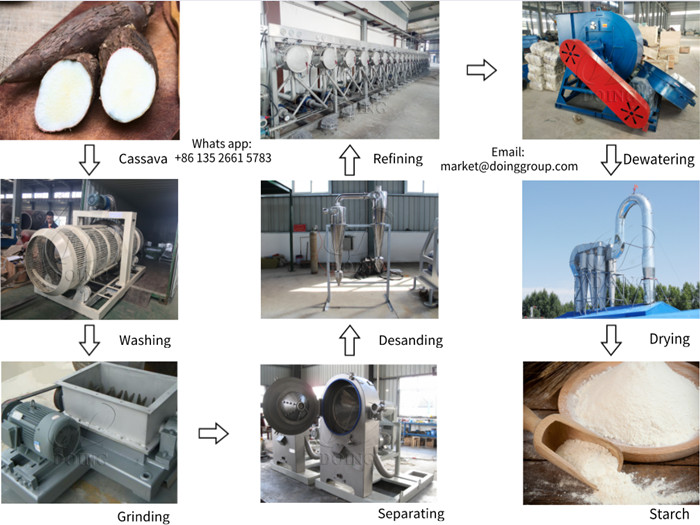

We can adjust the configuration of the cassava starch extraction machine according to the client’s budget plan. The standard configuration consists of cleaning section, processing section, and drying section.

1. In the cleaning section, we will match the feeding hopper, belt conveyor, dry sieve machine, paddle washer, and non-standard connection parts. Apart from receiving and conveying equipment, the main equipment is dry sieve and paddle washer. Dry sieve machine will remove surface impurities attached to cassava tubers, and the paddle washer will clean cassava completely by using water.

2. In the processing section, the main equipment is a cutting machine, rasper, centrifuge sieve, de-sander, hydrocyclone station, and peeler centrifuge. Firstly cleaned cassava is sent into a cutting machine, from which we can get small cassava pieces. And then the rasper machine will crush cassava into the mash. The next is a centrifuge sieve machine to remove fibers, a de-sander machine to eliminate sand, and a hydrocyclone station to concentrate and refine starch slurry. After we get the purified starch slurry, the next stage is to use a peeler centrifuge machine to dehydrate the slurry and get wet cassava starch powder.

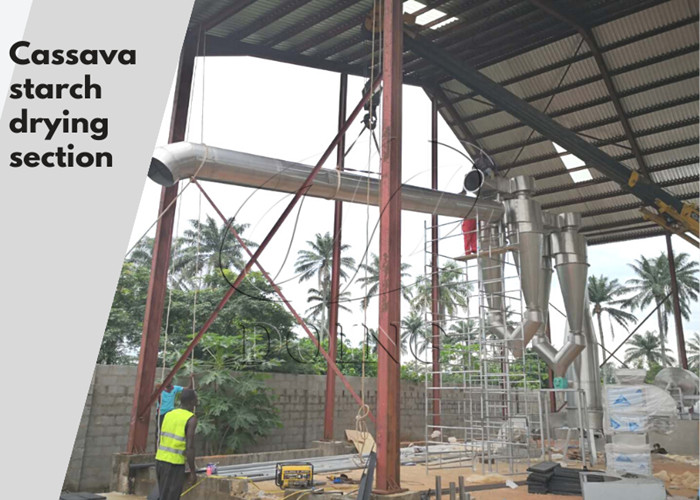

Cassava starch drying machineCassava starch drying machine

3. In the drying section, a flash dryer, starch sifter, and packaging machine are installed. The flash dryer can dry wet starch into dried powder with a moisture content of around 12%. And then sieving machine will be installed below to sieve coarse flour, and ensure the fineness of the starch product. Packaging machine is optional, weighing scale can be 25-50kg.

The above is the standard configuration of cassava starch extraction machine. If clients have a limited budget, we can use a hammer crusher, rotary sieve machine, vacuum dehydrator instead of rasper, centrifuge sieve, and peeler centrifuge.

Material of equipment

Basically, apart from cleaning section equipment, all parts of the cassava starch extraction machine that may contact with cassava or starch are made of stainless steel 304. We can also manufacture machines according to the client’s request. For example, if one wants a complete line made of stainless steel, it’s no problem at one, but the price will be higher. And if one wants to use stainless steel 316 instead of stainless steel 304, it’s fine, we will calculate the price accordingly.

Optional device

Apart from the main equipment, there is some optional device for cassava starch extraction machine, like a packaging machine, PLC control system, lab equipment, steam boiler, weighbridge, soft water treatment system, cables and cable bridge, operating platform, etc. The more optional device you add, the higher price of the cassava starch extraction machine. It all depends on your choice.

To sum up, the cost of cassava starch extraction machine depends on many factors. But whatever it will be, Henan Jinrui company can provide you with the most suitable proposal according to your own condition. If you want to know more, feel free to contact us any time.
