What is the principle and purpose of flash dryer?

In the realm of industrial drying, the flash dryer stands out as a highly efficient and versatile piece of equipment. Widely used in various sectors such as cassava processing, flour and starch production, it has become an essential component for achieving rapid and effective drying of different materials.

In this article, Henan Jinrui, as a professional cassava processing equipment manufacture, will delve deep into the working principle, diverse purposes, and remarkable advantages of the flash dryer.

Principle of Flash Dryer

The flash dryer uses the principle of internal and external pressure difference to dry the material. Most flash dryers adopt positive pressure drying, while Henan Jinrui's flash dryer adopts negative pressure drying, which effectively avoids the flying powder phenomenon during the drying process.

When the flash dryer in operation, wet material is introduced into the drying chamber. Simultaneously, high - velocity hot air (or other suitable gases) is blown into the chamber. This high - velocity hot air plays a crucial role in dispersing and suspending the wet particles. The wet particles, once dispersed, expose a large surface area. As a result, moisture evaporation occurs almost instantaneously. This is because the heat from the hot air is directly transferred to the wet particles, facilitating the rapid conversion of liquid water into water vapor. After the drying process, the dried material needs to be separated from the gas. This separation is typically achieved using cyclones or bag filters of flash dryer. Cyclones use centrifugal force to separate the heavier dried particles from the gas stream, while bag filters trap the particles in their porous fabric, allowing the clean gas to pass through.

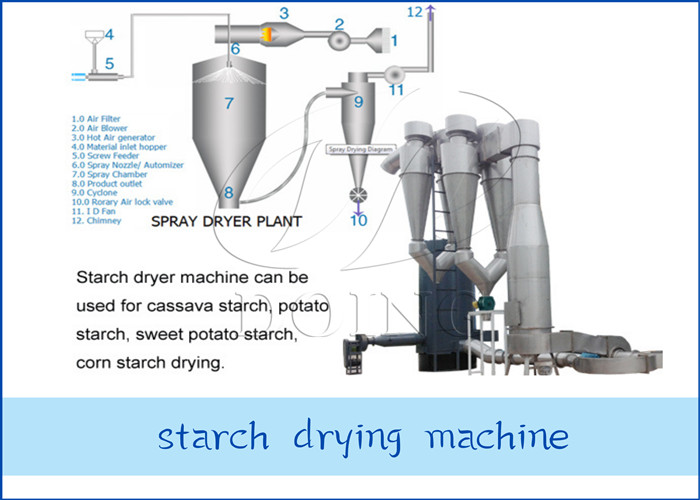

Working principle of flash dryer

Purposes of Flash Dryer

Rapid Drying for Diverse Materials

The most important purpose of flash dryers is to dry powdery, granular, or paste - like materials. In the food industry, it can be used to dry starch, which is a common ingredient in many food products. In the mining and minerals sector, it can dry various minerals. For example, in the processing of certain ores, the flash dryer can quickly remove moisture from the finely ground ore particles. The ability to dry these materials rapidly is crucial as it helps in maintaining the quality of the final product and also increases the overall productivity of the production process.

Continuous Processing for Large Scale Operations

One of the significant purposes of a flash dryer is its suitability for continuous processing. In large scale industrial drying, batch - by - batch operations can be time consuming and inefficient. The flash dryer allows for a continuous flow of wet material into the drying chamber, and the dried material is continuously discharged. This continuous operation ensures that there are no interruptions in the drying process, which is highly beneficial for industries that require a high volume of dried products. For instance, in a large scale cassava processing plant, where tons of cassava starch need to be dried daily, the continuous processing of the flash dryer can meet the production demands effectively.

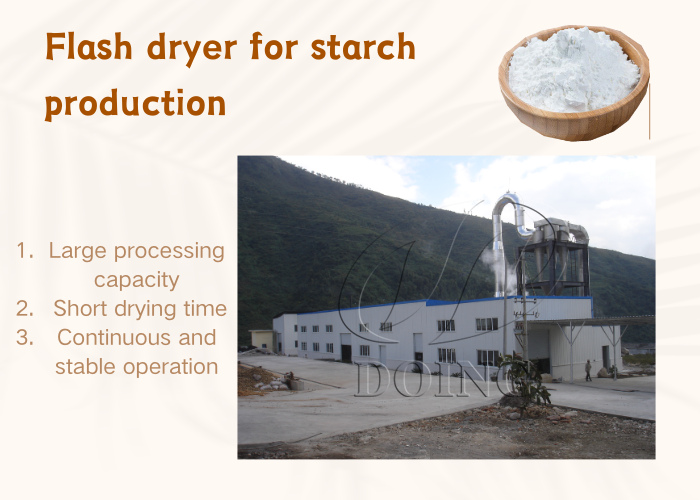

Purpose of flash dryer

Production of Fine Particle Powders

Another important purpose of the flash dryer is to produce dry, free - flowing powders. The high - velocity hot air not only dries the particles but also helps in breaking up any clumps or aggregates in the wet material. As a result, the final dried product is in the form of fine, free - flowing powders. This is particularly important in industries such as cassava starch, where the particle size and flowability of the dried product are critical for quality of final product.

Advantages of Flash Dryer

We have explained the main working principle and purpose of the flash dryer above. Now let's take the flash dryer manufactured by Henan Jinrui as an example to understand the important advantages of using flash dryer in the cassava starch processing industry.

Hot gas direct contact - energy efficient drying

The flash dryer is designed for energy efficient heat utilization. Since it operates on direct contact drying, where the hot gas comes into direct contact with the wet particles, the heat transfer is maximized. The hot gas transfers its heat directly to the wet particles, which is a more efficient way of drying compared to some other drying methods that may rely on indirect heating. This energy efficiency not only reduces the operational costs of the drying process but also makes it more environmentally friendly as it consumes less energy.

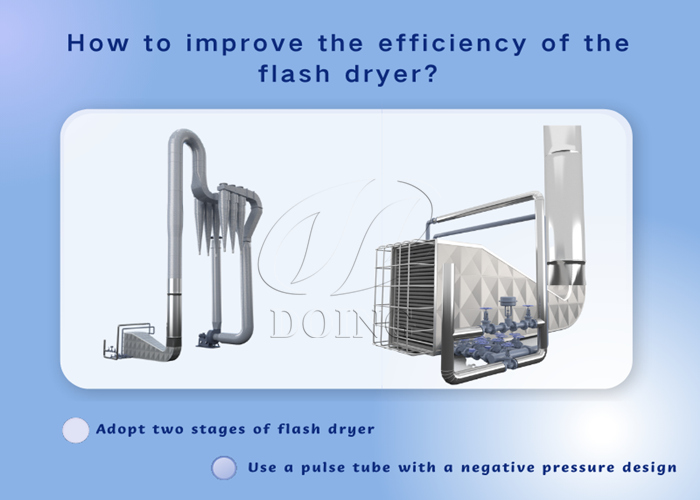

Advantages of flash dryer

Pulse design - increase drying effect

Henan Jinrui's flash dryer adopts pulse design, which is one of its major advantages. During the operation of the flash dryer, the coarse and fine pulse design is conducive to increasing the residence time of starch in the pipeline to achieve a better drying effect.

Negative pressure drying - avoid flying powder phenomenon

Compared with flash dryers provided by other manufacturers, the flash dryer designed by Henan Jinrui has a major advantage in that it adopts negative pressure design, which avoids flying powder phenomenon and reduces material loss while ensuring the starch drying effect.

Flash dryers are essential in modern industrial production due to their efficiency, versatility, and ability to handle a wide range of materials. Understanding flash dryers' working principle, purpose, and advantages can help industries optimize their drying processes and improve overall production efficiency. If you want to learn more about flash dryer, welcome to consult us!
